TKM SX-20
Coffee shops & semi-industrial

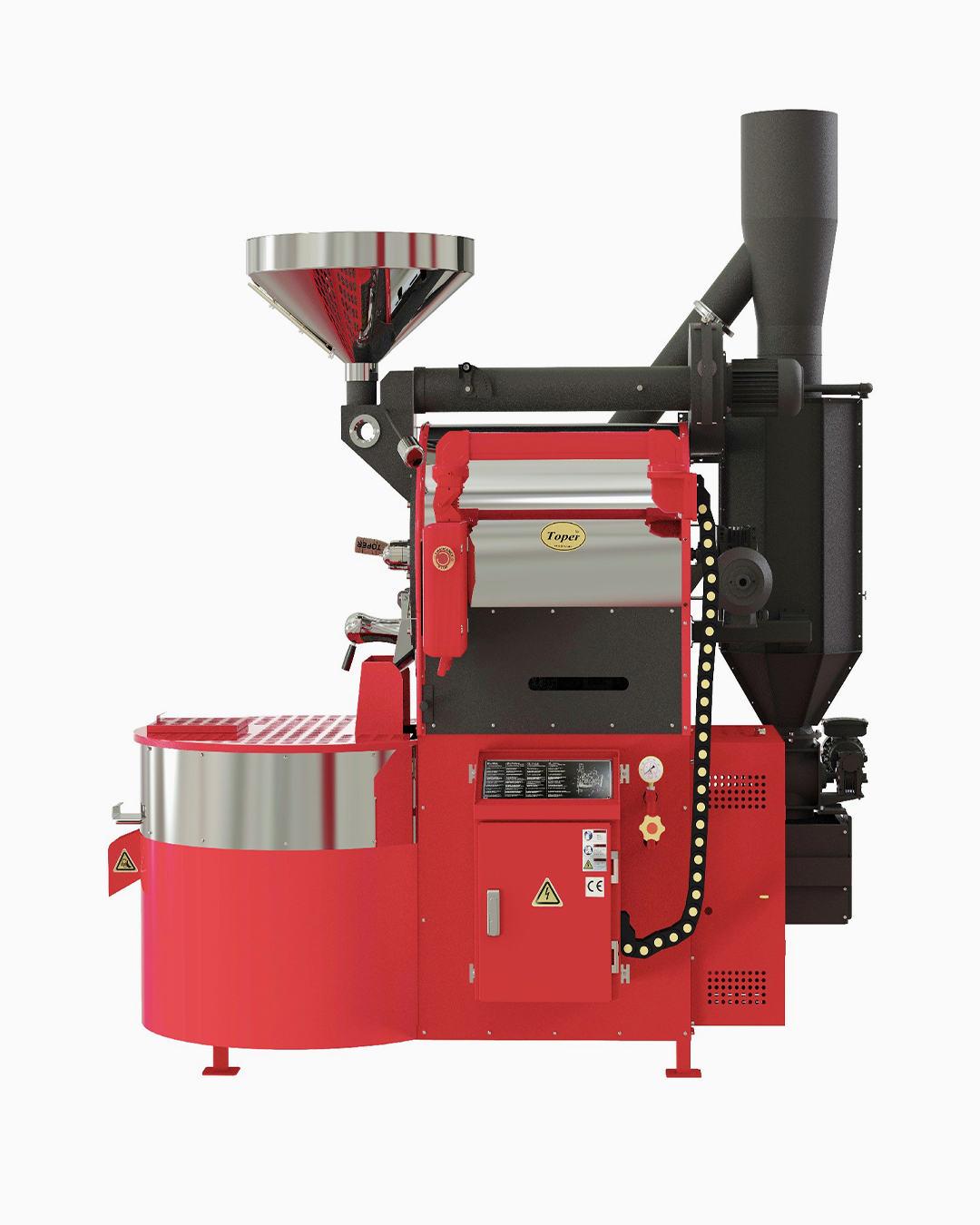

Unleash the Full Flavor of Coffee with the TKM-SX 20 Roaster
Built for those who take their coffee craft seriously, the TKM-SX 20 is the ultimate small-batch roaster for artisanal perfection. Designed with insight from world-class SCA trainers and powered by cutting-edge technology, it turns every 20 kg roast into a masterclass in consistency and taste.
Whether you’re roasting fruity Ethiopian beans or bold Brazilian blends, the TKM-SX 20 gives you total control—choose between electric, natural gas, or LPG models to match your setup. Thanks to its intelligent touch panel and compatibility with industry-standard software like Cropster and Artisan, every roast can be tracked, refined, and repeated with precision.
Speed meets artistry: expect light roasts in just 10 minutes, with medium and dark roasts ready in 12–13 minutes—perfect for serving fresh, vibrant flavor on demand.
Add in customizable colors, a sleek footprint, and integrated safety features, and you’re not just investing in a coffee roaster—you’re elevating your entire brand.

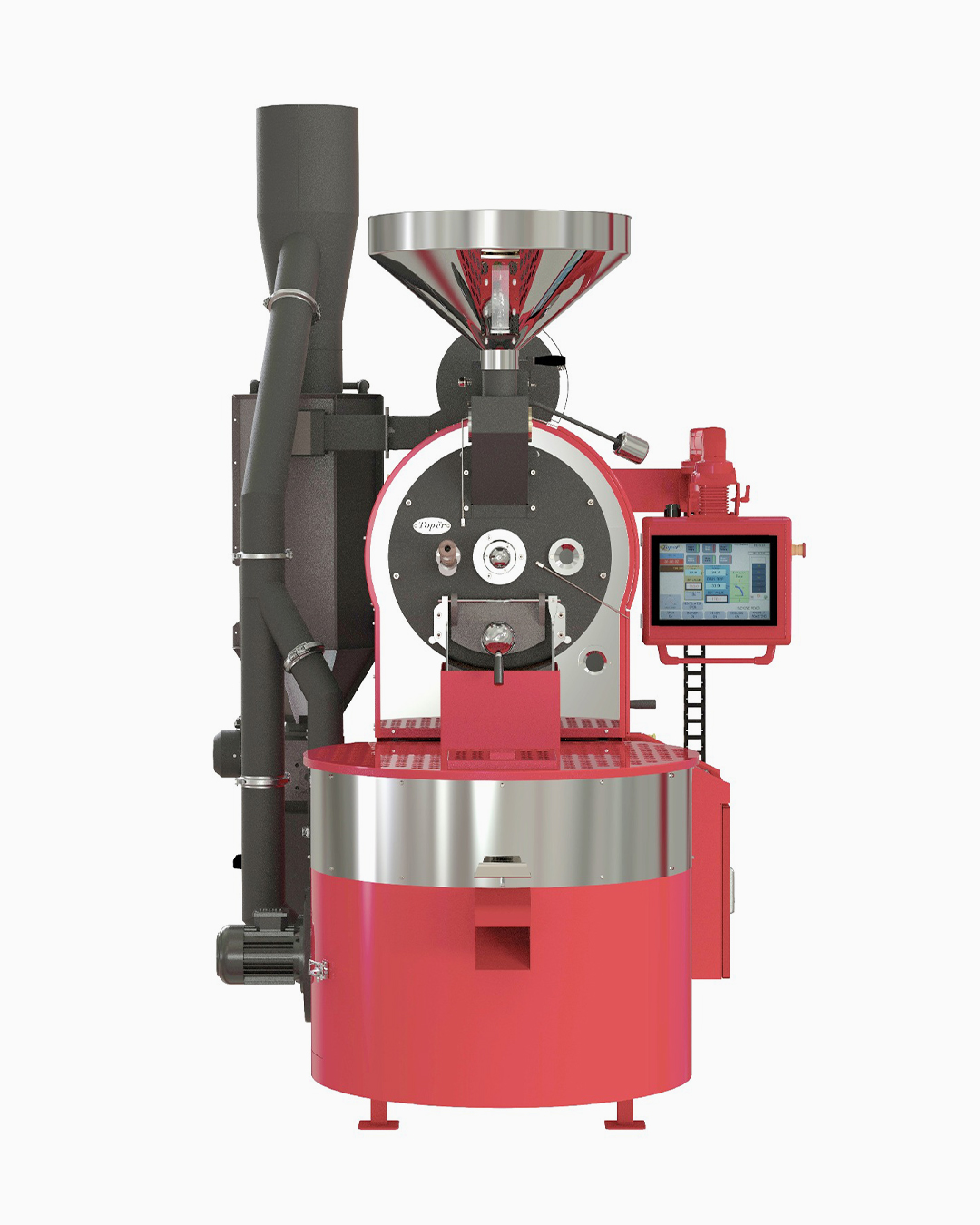

One of the key modern features of Toper’s shop-type coffee roasters: the advanced touch panel interface.
This feature serves both convenience and precision. Toper has integrated a microcomputer system into the machine that lets users store up to 12 different roasting profiles, tailoring the process to different beans or roast preferences. Through this interface, users can manage all five distinct stages of the roasting cycle, offering full control over the nuances of flavor, aroma, and roast depth.
This design isn’t just about automation—it’s about empowering roasters to fine-tune their craft with accuracy and repeatability, helping even small shops achieve professional-quality results consistently.
Double Walled
Drum
Touch Screen Control Panel
Profile & Automation Software
Variable Drum Speed
Flame Height Control
Variable Smoke Exhaust Speed
Three Thermocouples
Fire Suppression in Chaff Collector
Automatic Chaff Discharge
Toper Automated Repeatable Software
Independent Drives on Each Motor
Cooling of Roasted Coffee Under 3 Minutes
Only 1 Chimney Needed

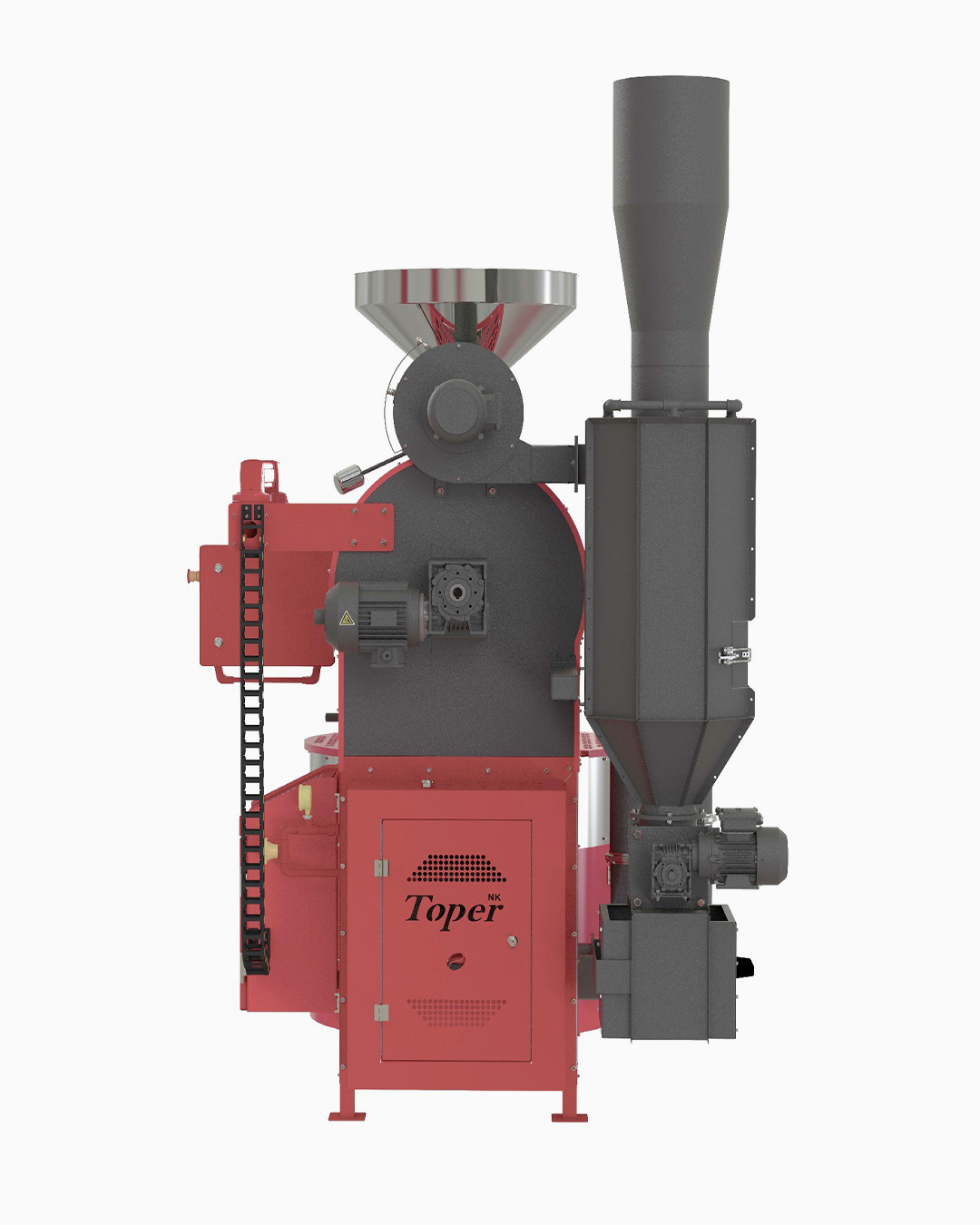

Unlimited Choice of Colors With RAL Paints
Our Internatıonal Certifications
Award Winning Designs
2 Years Warranty on Parts
One Year Free Membership wıth Cropster
Toper Coffee Academy Free Training
Special Ocean Farıng Wood Crates
Financing
Available
| ITEMS | MANUAL | AUTOMATED |
|---|---|---|
|
DRUM CAPACITY (MAX): |
20KG |
20KG |
|
DRUM CAPACITY (MIN): |
10KG |
10KG |
|
FLASH ROAST (QUICK ROAST): |
8 MINUTES
|
8 MINUTES
|
|
SLOW ROAST: |
18 MINUTES
|
18 MINUTES
|
|
TYPE OF ROASTING |
THERMAL TRANSFER / CONVECTION
|
THERMAL TRANSFER / CONVECTION
|
|

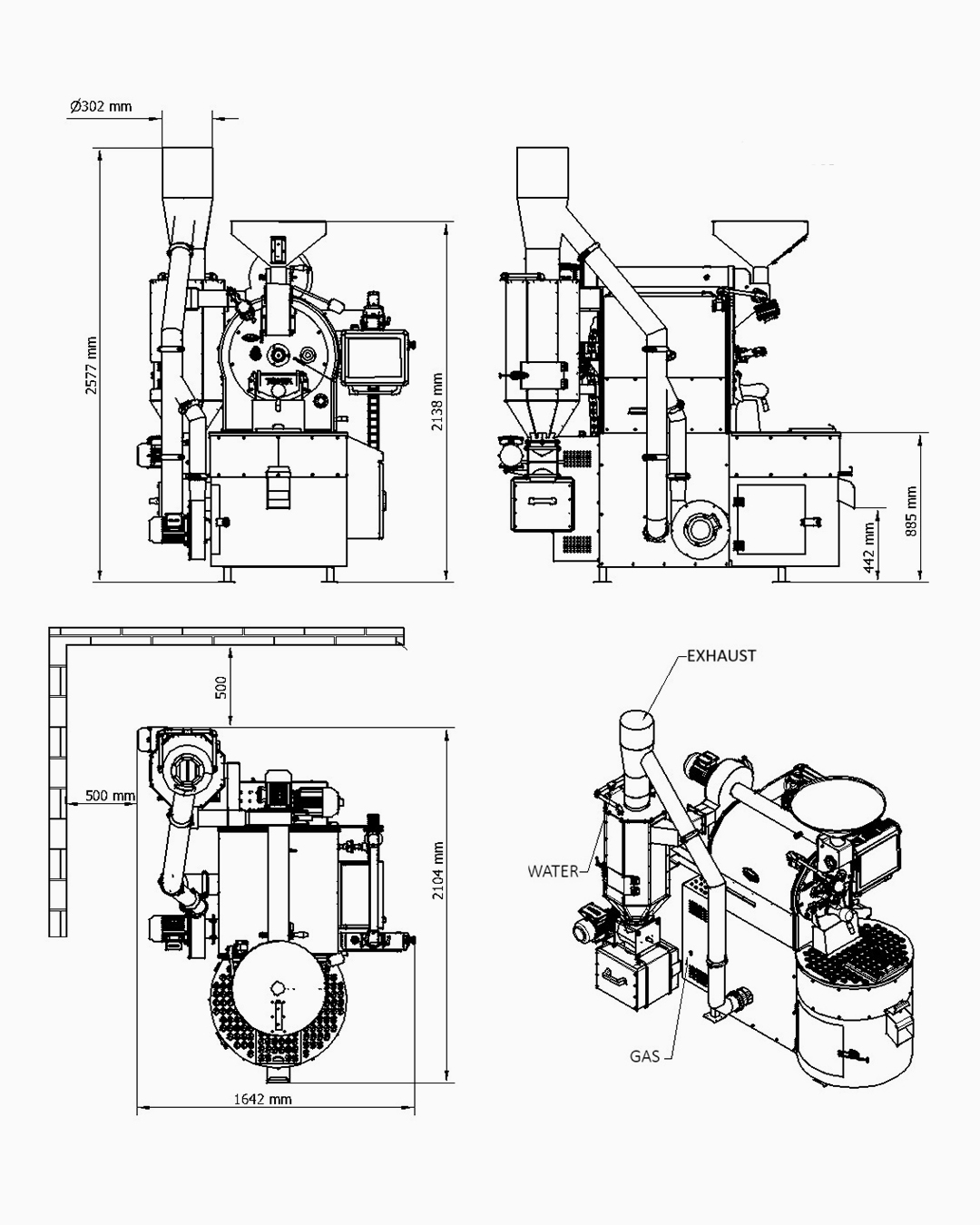

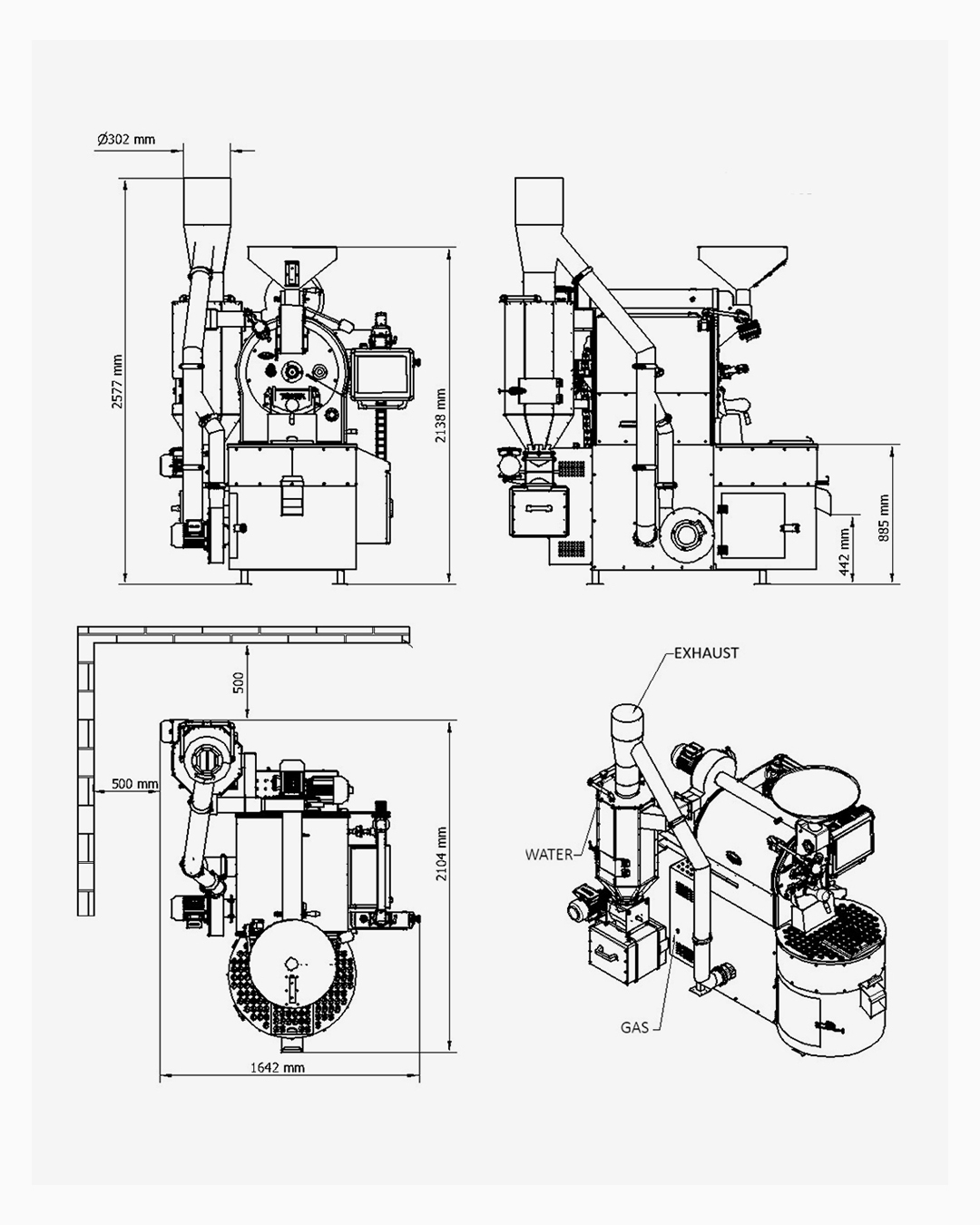

DIMENSIONS (METRIC & (IMPERIAL): |
210x164x258 cm / 83 X 65 X 102 inches |
210x164x258 cm / 83 X 65 X 102 inches |
|
WEIGHT (METRIC & (IMPERIAL):
|
600 KG / 1,323 LBS |
600 KG / 1,323 LBS
|
|
ELECTRICAL OPTIONS:
|
220v / 380v; SINGLE OR TRIPLE PHASES; 60Hz. |
220v / 380v; SINGLE OR TRIPLE PHASES; 60Hz. |
|
AMPERAGE
|
25 AMPS |
25 AMPS |
|
SOFTWARE TYPE |
MANUAL
|
INDUTRIAL AUTOMATION |
|
TOPER Profile
|
NOT AVAILABLE
|
INDUTRIAL AUTOMATION |
|
CROSPTER |
PC/USB PORT
|
INDUTRIAL AUTOMATION |
|
ARTISAN |
PC/USB PORT |
PC/USB PORT |
|
OPERATION TYPE |
MANUAL CONTROLS |
INDUTRIAL AUTOMATION |
|
SPEED CONTROL |
MANUAL METER
|
INDUTRIAL AUTOMATION |
|
FLAME CONTROL |
MANUAL METER |
INDUTRIAL AUTOMATION
|
|
PC CONNECITON
|
YES
|
YES
|
|
BTU
|
112,600 BTU |
112,600 BTU |
|
CFM SMOKE
|
1,065 CFM |
1,065 CFM |
|
CFM COOLING
|
1,342 CFM & 1,131 CFM |
1,342 CFM & 1,131 CFM |
|
OPTIONALS
|
LOADER; AFTERBURNER; DESTONER |
LOADER; AFTERBURNER; DESTONER |
|
CERTIFICATIONS
|
CE; UL; CSA
|
CE; UL; CSA
|
