TKM SX-180

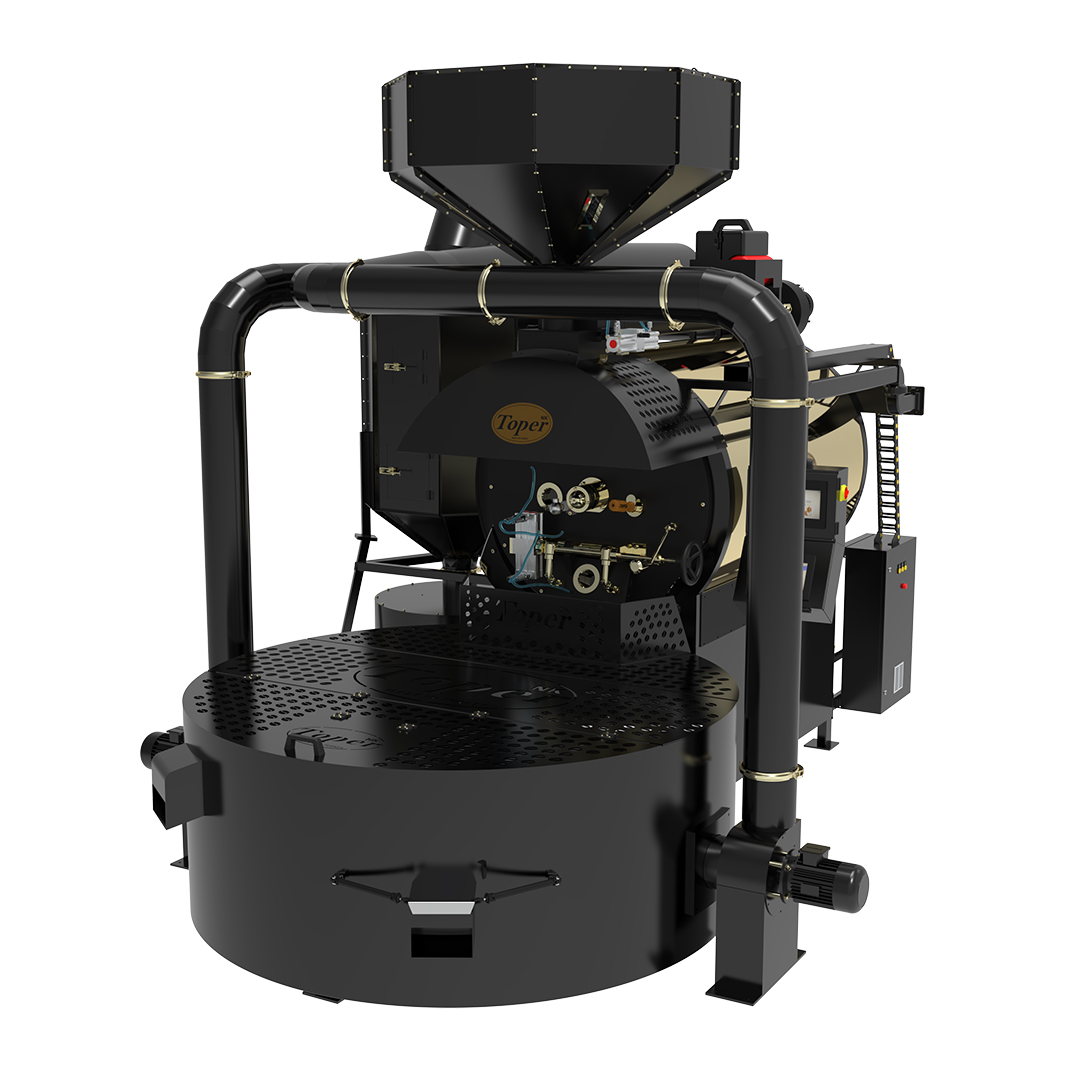

Coffee Roasting Machine Industrial Type TKM SX - 180
Engineered for High-Volume Precision Roasting
The TKM SX Industrial Coffee Roasters are designed for seamless, large-scale production without compromising on quality. Built for consistency and total control, they efficiently handle medium to very large roasting volumes—processing batch sizes from 30 kg to 500 kg and everything in between.
Compatibility with Third Party Software (Cropster / Artisan etc.)
Double Walled
Drum

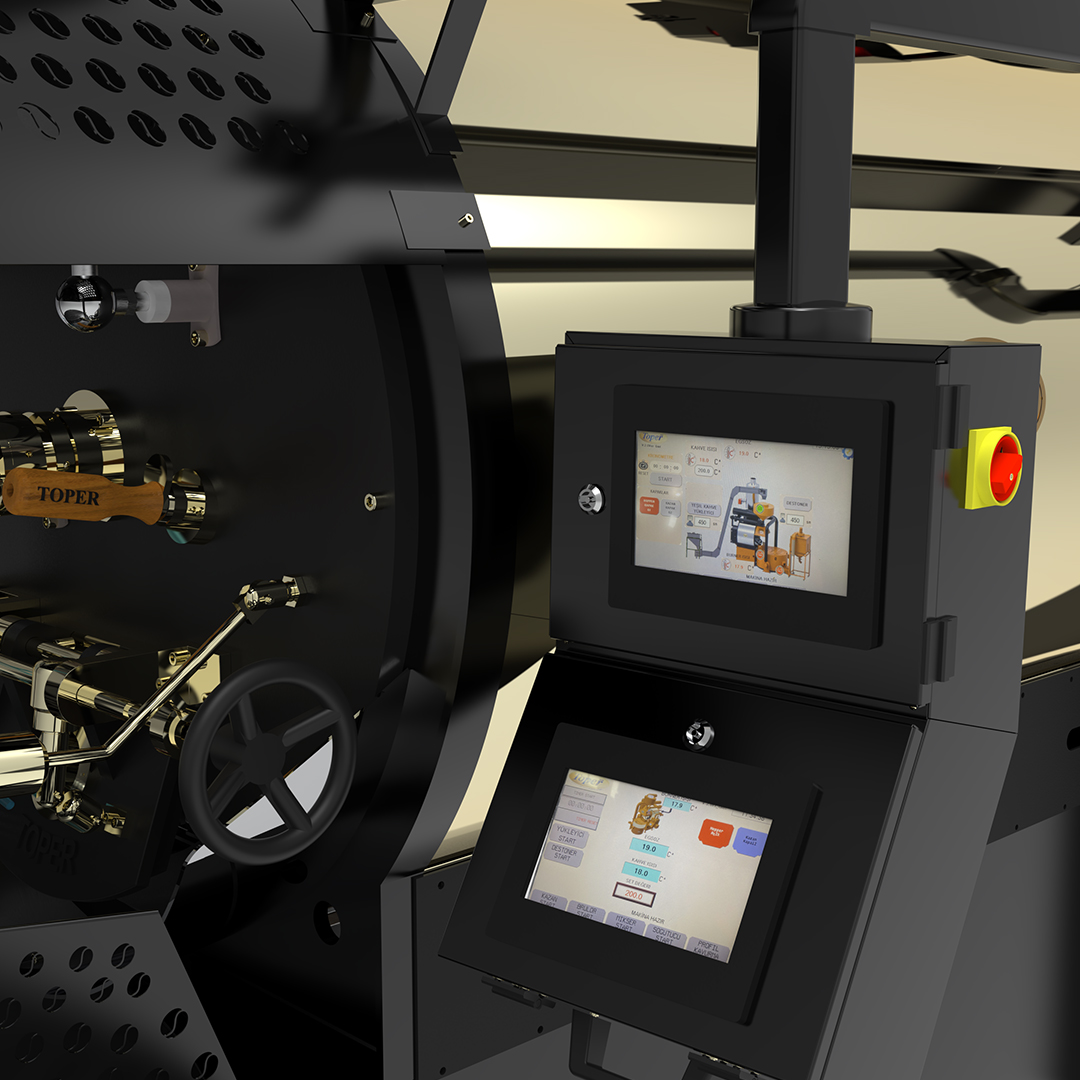

Touch Screen Control Panel
Profile & Automation Software
Variable Drum Speed
Flame Height Control
Variable Smoke Exhaust Speed
Three Thermocouples
Fire Suppression in Chaff Collector
Automatic Chaff Discharge
Toper Automated Repeatable Software
Independent Drives on Each Motor
Cooling of Roasted Coffee Under 3 Minutes
Only 1 Chimney Needed
Unlimited Choice of Colors With RAL Paints
Our Internatıonal Certifications
Award Winning Designs
2 Years Warranty on Parts
One Year Free Membership wıth Cropster
Toper Coffee Academy Free Training
Special Ocean Farıng Wood Crates
Financing
Available
OUR STANDARTS
| Position | Description |
|---|---|
| 1 | Pneumatic loader |
| 2 | Roaster |
| 3 | Afterburner |
| 4 | Destoner |
| SPECIFICATIONS | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MODEL NAME |
TKM-SX 180 |
||||||||||||
|
DRUM CAPACITY (MAX): |
180KG / 396,83 LBS |
||||||||||||
|
DRUM CAPACITY (MIN): |
90KG / 198,42 LBS |
||||||||||||
|
FLASH ROAST (QUICK ROAST): |
12 MINUTES
|
||||||||||||
|
SLOW ROAST: |
22 MINUTES
|
||||||||||||
|
TYPE OF ROASTING |
|
||||||||||||
|
ROASTING FLOOR PLAN
(W x D x H) |
900X700X500 CM / 354″ X 276″ X 197″ INCHES |
||||||||||||
|
WEIGHT (METRIC & (IMPERIAL):
|
4,300 KG / 9,479,88 LBS
|
||||||||||||
|
FUEL TYPE |
NATURAL GAS / LPG / DIESEL |
||||||||||||
|
GAS PİPE DIAMETER |
2.54 CM / 1″
|
||||||||||||
|
REQUIRED PRESSURE
|
|
||||||||||||
|
CONSUMPTİON THERMAL |
|
||||||||||||
|
CONSUMPTION HOT AIR |
|
||||||||||||
|
REQUIRED AIR
|
4000 m³/H
|
||||||||||||
|
DUCTING DIAMETER |
|
||||||||||||
|
AVAILABLE VOLTAGE |
|
||||||||||||
|
NUBMER OF MOTORS |
7 |
||||||||||||
|
ELECTRIC CONSUMPTION |
|
||||||||||||
|
REQUIRED INSTALLATION BY CUSTOMER |
|
||||||||||||
|
REQUIRED AIR INPUT |
8 – 12 mbar |
||||||||||||
|
REQUIRED WATER INPUT |
1/2″ / 1,27 CM |
||||||||||||
|
RPM PER MINUTE |
|
||||||||||||
Customize your roaster with a wide range of colors!
